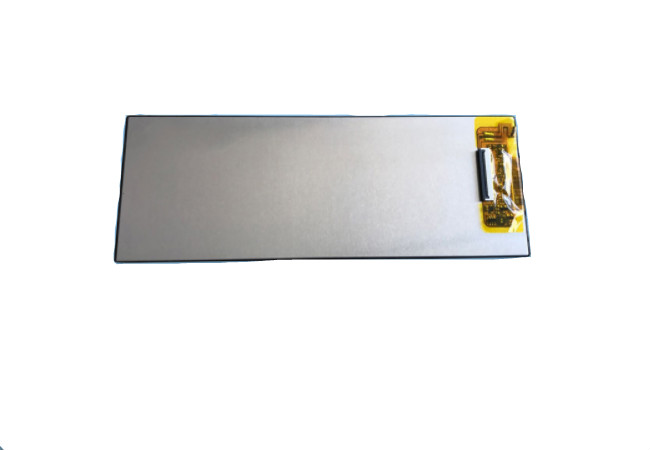

    3.8 Inch TFT LCD Module 480 * 72 Bar Type Stretched With 40 Pins RGB Interface

    Ask Lasest Price
    Brand Name : Fangsheng
    Model Number : FSNMZ2D4N426-AFL
    Certification : ISO9001:2015
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, Paypal
    Supply Ability : 200K Sets / Month
    Delivery Time : 3~5 Working Days
    • Product Details
    • Company Profile

    3.8 Inch TFT LCD Module 480 * 72 Bar Type Stretched With 40 Pins RGB Interface


    3.8 Inch 480 * 72 Bar Type Stretched Tft Lcd with 40pin RGB Interface



    A. Specifications:

    Item
    Contents
    Description
    1
    Product Name
    3.8 Inch 480 * 72 Bar Type Stretched Tft Lcd
    2
    Module Size
    104 mm ( W ) * 27 mm ( H ) * 3 mm ( T )
    3
    Resolution
    480 * 76
    4
    Dot size
    0.153 (H ) * 0.153 ( V )
    5
    View Angle
    12 O ' Clock
    6
    Interface Type
    RGB Strip
    7
    Pins Number
    40 Pins
    8
    Backlight Tpye
    27 LEDs 3 In Serial 9 In parallel


    Our Advantage:

    1 . Factory direct price.
    2 . Good quality.
    3 . Quick shipping within 5 days.
    4 . For stocks, no moq , 1pc ok . small order welcome..
    5 . Online payment.
    6 . Support 7 days refund.
    7 . After sales services 24 hours / 7 days

    Our Certificates:

    1. GB/T19001-2016 idt ISO9001:2015
    2. CE & ROHS
    3. SGS of LCD Display


    FSNT0390D-NPFL
    is 480 * 72 dots resistive touch Lcd Module. We promise the long term continuity supply for this product no less than 17 years since 2001.

    B. Product Applications:

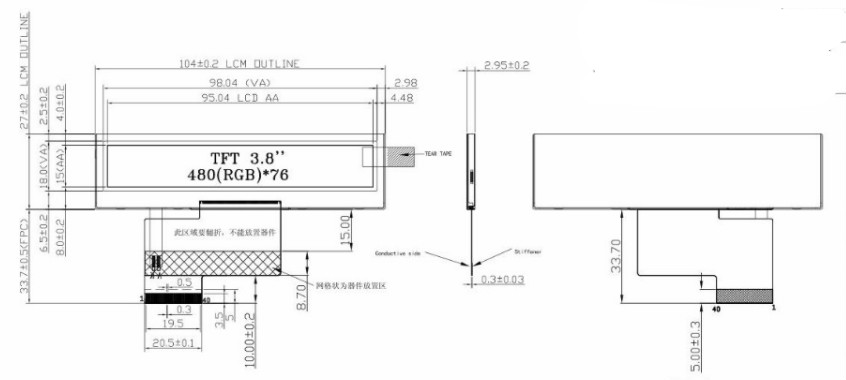

    C. Structure Diagram:




    Fangsheng
    is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.
