    Industrial TFT LCD Capacitive Touchscreen Multi Support For Raspberry Pi Use

    Ask Lasest Price
    Brand Name : Fangsheng
    Model Number : FSTN70TN01V0-PFL
    Certification : ISO9001:2015
    Price : Negotiation
    Payment Terms : T/T,Western Union, Paypal
    Supply Ability : 200K Sets / Month
    Delivery Time : 3 ~ 5 Working Days
    • Product Details
    • Company Profile

    Industrial TFT LCD Capacitive Touchscreen Multi Support For Raspberry Pi Use

    7 Inch 1024 * 600 IPS Lcd Display 7 Inch Tft Lcd Capacitive Touchscreen Panel With Lvds Interface


    A. Specifications:


    ITEM
    CONTENT
    DESCRIPTION

    1

    Display outline size

    164.80 * ( H ) * 99.80 ( W ) * 7.1mm ( T )

    2

    VA size

    154.21 ( W ) x 85.92 ( H ) mm

    3

    Resolution

    1040 RGB ( H ) x 600 ( V )

    4

    With /Without Touch screen

    CTP

    5

    Interface

    RGB

    6

    Backlight

    24 - LEDs (white)

    7

    Viewing Direction

    All

    8

    Drive IC

    HX8264 + HX8664


    ItemBuilding & Capacity InformationRemark
    1Address & ConctactorIn Building 2, BaiDai Industrial Park, ChangPing Road , DaoJiao Town, Dongguan , Guangdong, P.R. China

    email:fssales04@fsdzlcd.com

    Or Fancy@fsdzlcd.com

    M: +86-134 1284 8038 (24 hours) | Whatsapp//Wechat:86-134 1284 8038

    Skype+86 189 2546 1855

    Tel: +86 769 22705392-815

    Fax: +86 769 22705825

    2StaffDirect+ Indirect Labors+120
    3Build 1Office , Factory, Warehouse4,100M²Total 5,000M²
    4Build 2Dormitory913M²
    5Product Capacity* LCM Drawing:2-7 days
    * LCM Sample:3-6 weeks
    * Lead Time for Mass *Production:4 - 8 weeks
    * LCM Cap: 30K/D
    * BL Cap:30K/D
    * CTP Cap:3K/D
    6Production Line* Automatic Production Lines
    * Semi-Automatic Production Lines
    * Semi-Automatic backlight assembly lines
    * Capacitive touch panel assembly line
    * TFT&CTP optical bonding

    Our Advantage:

    1 . Factory direct price.
    2 . Good quality.
    3 . Quick shipping within 5 days.
    4 . For stocks, no moq , 1pc ok . small order welcome..
    5 . Online payment.
    6 . Support 7 days refund.
    7 . After sales services 24 hours / 7 days


    Our Certificates:

    1. GB / T19001-2016 idt ISO9001:2015
    2. CE & ROHS
    3. SGS of LCD Display


    FSTN70TN01V0-PFL is 800 * 480 dots IPS CTP Lcd Module with brightness 250 to 550 Cd / m2. We promise the long term continuity supply for this product no less than 17 years since 2001.

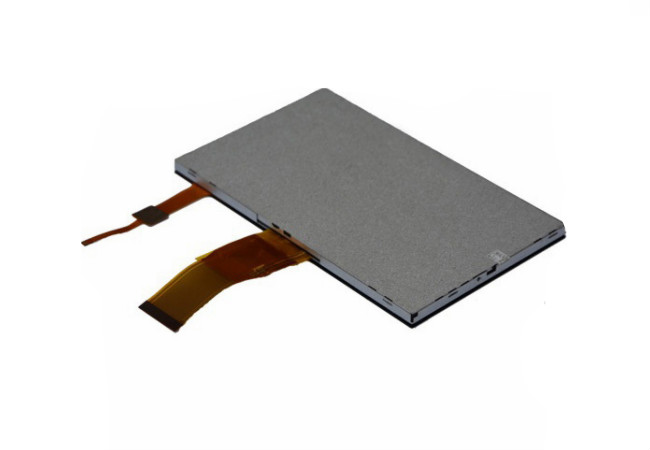

    B. Product Details:

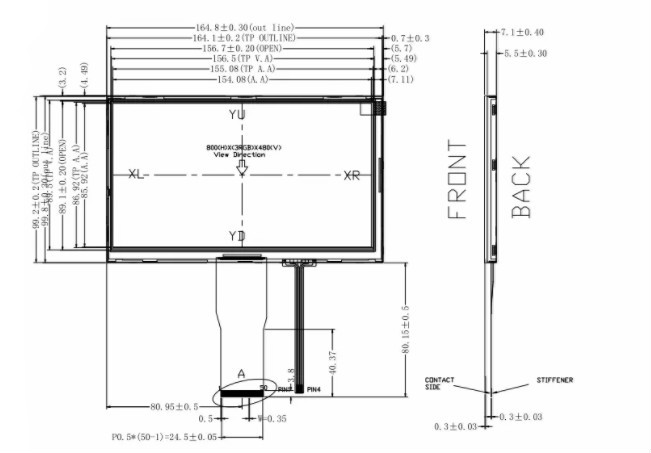

    C. Structure Diagram:



    Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.

    ILI9881C
