7 Inch TFT LCD Display Bar Type Lcd Display Module LVDS, RGB Interface Lcd

Ask Lasest Price
Brand Name :	Fangsheng
Model Number :	FS068HWXHO2CTTL
Certification :	ISO9001:2015
Price :	Negotiation
Payment Terms :	T/T,Western Union, Paypal
Supply Ability :	200K Sets / Month
Delivery Time :	3 ~ 5 Working Days

Add to Cart

Product Details
Company Profile

7 Inch TFT LCD Display Bar Type Lcd Display Module LVDS, RGB Interface Lcd

7 Inch Tft Lcd Resistive Touchscreen 480 x 1280 IPS Lcd Module With MIPI interface For Industrial Equipment

A. Specifications:

ITEM	CONTENT	DESCRIPTION
1	Display outline size	66.6 mm ( w ) * 181.0 mm ( h ) * 7.15 mm ( d )
2	VA size	60.22 * 160.55 mm
3	Resolution	480 RGB ( H ) x 1280 ( V )
4	With /Without Touch screen	RTP / CTP Or Without Option
5	Interface	MIPI
6	Viewing Angle	All
7	Color	16.7 M Colors
8	Pixel Pitch	41.82 mm * 125.46 mm

TFT Benefits and Uses:

TFT LCD technology used to have viewing angle and slow response time issues. Thanks to new TFT LCD screen technology, IPS display (in-plane switching) used, we don’t see these kinds of issues in the market.

For future development, the TFT LCDs are getting bigger (146 inches by Samsung at CES’19), high resolution (8K 7680 × 4320 pixels), high-speed good for gaming, wide viewing angles good enough for 170 degrees, high contrast ratio good enough for most demanding aviation computer monitors, high image quality fitting most critical medical surgery monitors, combining with PCAP (capacitive touch screen).

Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days

Our Certificates:
1. GB / T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display

FS068HWXHO2CTTL is 480 * 1280 dots bar type and thin film transistor IPS Lcd Module with brightness 350 Cd / m2, MIPI interface.

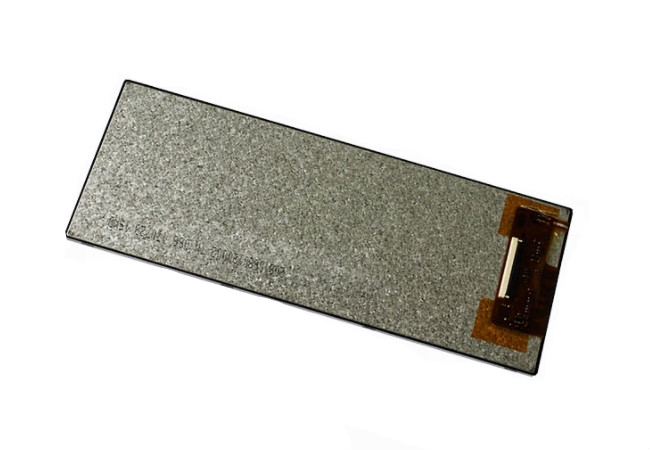

B. Product Details:

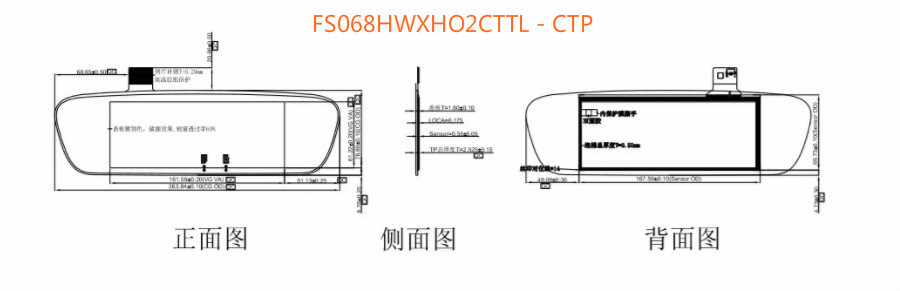

C. Structure Diagram:

Pins Definition:

Main Products: including 1.44",1.5",1.54",1.77", 2.0",2.4", 2.7", 2.8", 3.0",3.5", 4.3", 5.0", 7.0", 8.0", 9.7",10.1", 13.3" TFT LCD Modules, Resistive Touch panel and Capacitive Touch panel products.

No	Size Inch	Dot Format	Outline Size (mm)	Contrast(Cr)	Backlight	Brightness	Interface	Touch Panel
1	1.44	128xRGBx128	32.36x38.0x2.6	500	1LED	240	SPI	-
2	1.77	128xRGBx160	34.70x46.7x2.5	500	2LED	320	8bits parallel	-
3	2.0	176xRGBx220	37.68X51.30X2.23	500	3LED	180	8bits parallel	-
4	2.3	320xRGBx240	51.0X45.8X2.3	500	4LED	280	SPI	-
5	2.36	480X234	55.2x44.75x2.9	250	2LED	250	8bits RGB	-
6	2.4	240xRGBx320	42.72x60.26x2.46	250	4LED	200	8bits80 parallel	-
7	2.7	240xRGBx320	62.60x45.70x2.45	400	4LED	350	8bits RGB	RTP
8	2.83	240xRGBx320	50X69.2X2.4	500	4LED	250	8/16bits parallel	RTP
9	3.5	320xRGBX480	54.66X82.9X2.1	500	4LED	380	18bits RGB+SPI	RTP/CTP
10	4.3	480xRGBX272	105.5X67.2X4.2	500	6LED	450	24bits RGB	RTP/CTP
11	5	800xRGBX480/1024x600	120.7x75.8x4.3	400	2x5LED	480	24bits RGB	RTP/CTP
12	5.7	640xRGBX480	127.0X98.4X7.0	250	2x6LED	700	18bits RGB	RTP/CTP
13	6.2	800xRGBX480	155.2X88.2X6.5	600	3x7LED	250	24bits RGB	RTP/CTP
14	7	800xRGBX480 1024xRGBx600	164.9X100X7.2	500	7x3LED	350	24bits RGB	RTP/CTP
15	8	800xRGBX480 1024xRGBx600	183.0x141.0x6.2	500	9x3LED	500	24bits RGB	RTP/CTP
16	10.1	800xRGBX480 1024xRGBx600	235.0x143.0x5.0	600	13x3LED	450	LVDS	RTP/CTP

Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.
