    7 Inch TFT LCD Module MCU Interface With PCB Control Board For Raspberry Pi 3

    Ask Lasest Price
    Brand Name : Fangsheng
    Model Number : FST070480R-70
    Certification : ISO9001:2015
    Price : Negotiation
    Payment Terms : T/T,Western Union, Paypal
    Supply Ability : 200K Sets / Month
    Delivery Time : 3 ~ 5 Working Days
    • Product Details
    • Company Profile

    7 Inch TFT LCD Module MCU Interface With PCB Control Board For Raspberry Pi 3

    7 Inch TFT Lcd Module Lcd Display MCU Interface Lcd With PCB Control Board for Raspberry Pi 3


    FST070480R-70 is a 7.0 TFT dot matrix LCD module.
    It is composed of a PCBA,color-LCD panel(7.0),RTP(7.0), driver IC, FPC and a backlight unit. The module display area contains 800x480 pixels. This product accords with RoHS environmental criterion.



    Product Details:

    Each LCD will be tested one by one with our device before shipping to make sure the lcd will works perfect on your device,if you don't know how to install it,we suggest you to find a professional technician to do for you.Installation guide not provide, please be sure you know how to install it before bid.

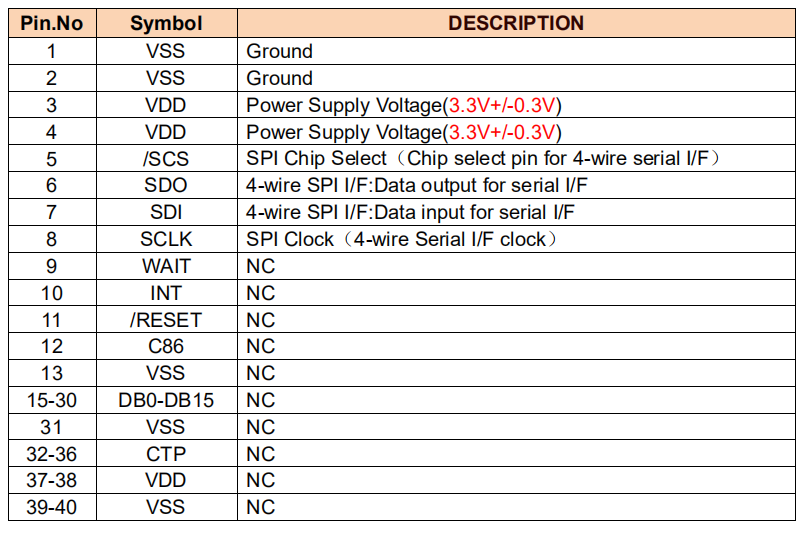

    PINs Connect


    Specifications:

    Driven by Raspberry Pi (linux) & win7/win8/win10 systems
    ITEM
    CONTENT
    DESCRIPTION
    1
    Display outline size
    180 ( H ) * 104 ( W ) * 12 mm ( T )
    2
    VA size
    165 * ( H ) * 100( W ) mm
    3
    Resolution
    800 RGB ( H ) x 480 ( V )
    4
    With /Without Touch screen
    Capacitvie Touch
    5
    Interface
    MCU - SPI 4 Wire
    6
    Backlight
    24 Led
    7
    Color
    65k 262K
    8
    Drive IC
    RA8875

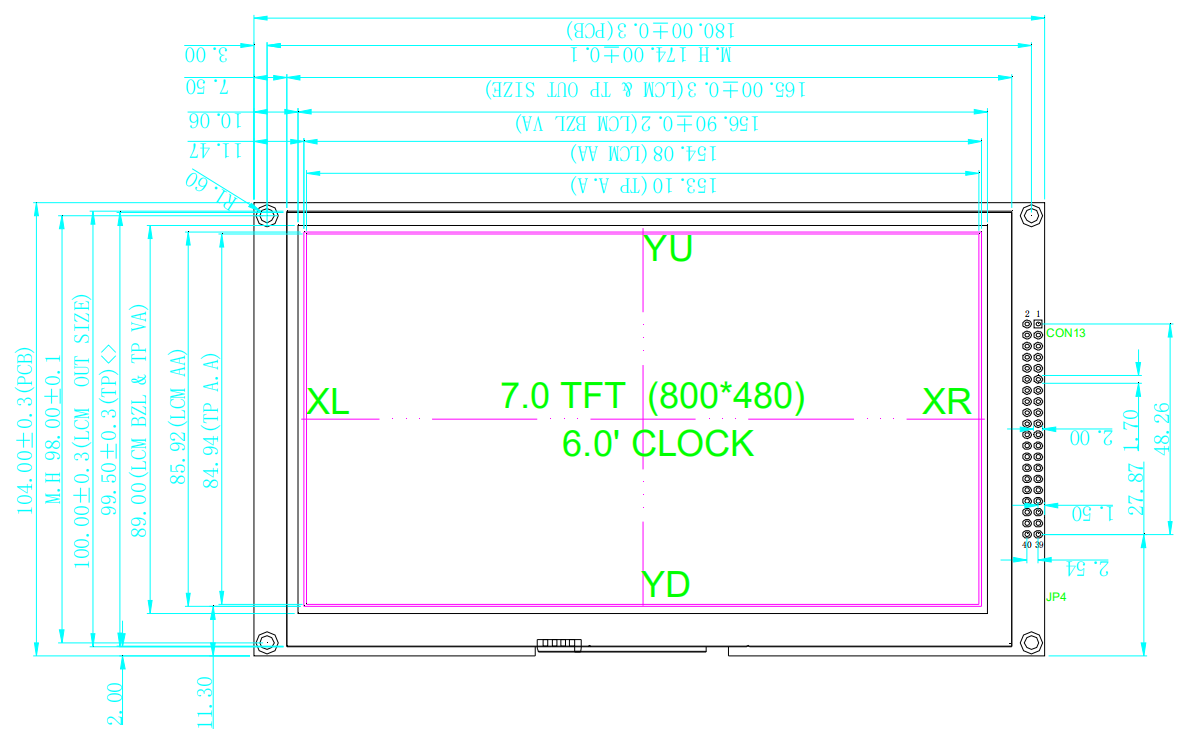

    Structure Diagram:

    Controller driver board, MCU SPI Interface board, LCD cable and connector)

    Various Production Line : We provide a wide range of lcd led displays, hot smart products, promotional gifts for your customers, everything we offered are easilly customized with your logo or your company information for advertising them.

    Our Advantages:

    Various Production Line : We provide a wide range of lcd led displays, hot smart products, promotional gifts for your customers, everything we offered are easilly customized with your logo or your company information for advertising them.


    ItemBuilding & Capacity InformationRemark
    1Address & ConctactorIn Building 2, BaiDai Industrial Park, ChangPing Road , DaoJiao Town, Dongguan , Guangdong, P.R. China

    Cotact:fssales04@fsdzlcd.com

    Or Fancy@fsdzlcd.com

    M: +86-134 1284 8038 (24 hours) Whatsapp//Wechat:86-134 1284 8038

    Skype+86 189 2546 1855

    Tel: +86 769 22705392-815

    Fax: +86 769 22705825

    2StaffDirect+ Indirect Labors+120
    3Build 1Office , Factory, Warehouse4,100M²Total 5,000M²
    4Build 2Dormitory913M²
    5Product Capacity* LCM Drawing:2-7 days
    * LCM Sample:3-6 weeks
    * Lead Time for Mass *Production:4 - 8 weeks
    * LCM Cap: 30K/D
    * BL Cap:30K/D
    * CTP Cap:3K/D
    6Production Line* Automatic Production Lines
    * Semi-Automatic Production Lines
    * Semi-Automatic backlight assembly lines
    * Capacitive touch panel assembly line
    * TFT&CTP optical bonding
