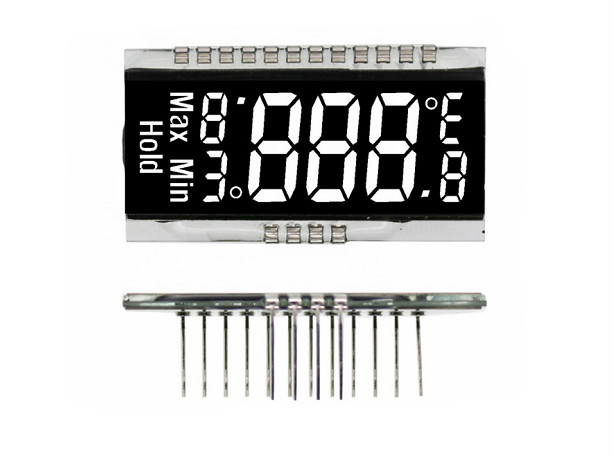

Custom PMVA Lcd Screen Monochrome Lcd Panel 7 Segment Display
Screen
We are specialized in lcd field since 2001 Years with experience and good reputation
· Small MOQ Support & Fast Response to Customers
· We’re China's most powerful producer of lcd screen from 1m to 20m
· Medium-sized enterprise in a rapid and stable development ensure
satisfied quality and competitive price.
Technical parameters:
| ITEM | CONTENT | DESCRIPTION |
| 1 | Lcd Type | VA Lcd Display |
| 2 | Outline Size | Custom, 27mm ( L ) * 50mm ( W ) * 1.1mm T |
| 3 | Viewing Direction | 6 O ' clock |
| 4 | Voltage | 5.0V |
| 5 | Display Mode | Positive |
| 6 | Polarizer Mode | Reflective |
| 7 | Operation temp | - 10°C to + 60°C |
| 8 | Storage temp | - 20°C to + 70°C |
| 9 | LED Connect | Metal Pin |
Sample: 12~15daysLead time :
>=5000 PCS: 3.5 weeks
>=10000 PCS: 4 weeks
>=100000 PCS : 4 weeks
1. LCD Screen Material: Glass is main material;
2. LCD Display Structure: Polarizer,electrode,Polymer,ITO,Reflector;
3. Display Type: FSTN, STN, VA, HTN, TN;
4. LCD Display Mode: Positive display,Negative display
5. Viewing Angle: 3 o’clock, 6 o’clock, 9 o’clock, 12 o’clock;
6. The ITO thickness normal value: 0.4mm, 0.55mm, 0.7mm, 1.1mm;
7. Connector Type:Metal stitch, electroconductive rubber, heat-seal connector;
8. Transmission of light Type: reflecting type, transmission type, half transmission;
9. Backlight: LED backlight, EL backlight, CCFL backlight;
10. Operation Temperature: -40℃~+90℃ Over Wide Temperature
Application:
Duty cycle
This parameter is also known as Duty number or COM number. Because
STN/TN LCD is usually driven by time-division dynamic scanning
mode, in this mode, the ratio of the effective turn-on time of each
COM to the whole scan cycle, i.e. Duty, is fixed, equal to 1/COM
number. Bias: Bias
The driving waveform of SEG/COM of LCD is analog signal, and the
ratio of analog voltage to the maximum output voltage of LCD is
called bias. Generally speaking, Bias is expressed by the ratio of
the lowest output voltage to the highest output voltage. Generally
speaking, there is a certain relationship between Bias and Duty.
The more the number of Duty, the shorter the scanning time of each
COM. To achieve the same display brightness and contrast, the
voltage of VON will be increased, and the difference between the
selection level and the non-selection level needs to be increased,
that is, Bias needs to be increased. There is an empirical formula
between Duty and Bias, that is, to achieve the same display
brightness and contrast.
Advantages for choose Fangsheng's lcd panel
· Enviromental protection
· High quality material, premium craftsmanship
· Fast delivery and safe package
· Advanced and stable production line ensure perfect quality
products
· Mature and professional R&D and after-service
· Professional and strictly quality control department
· Reliablity test and full examination to ensure the high quality
of the display
· Industrial standard, simple and stable design.
