3.97 Inch 480*800 IPS RGB 16bit Interface TFT LCD Display

Ask Lasest Price
Brand Name :	Fangsheng
Model Number :	FT39731JPY-39P
Certification :	ISO9001:2015
Price :	Negotiation
Payment Terms :	T/T,Western Union, Paypal
Supply Ability :	200K Sets / Month
Delivery Time :	3 ~ 5 Working Days

Add to Cart

Product Details
Company Profile

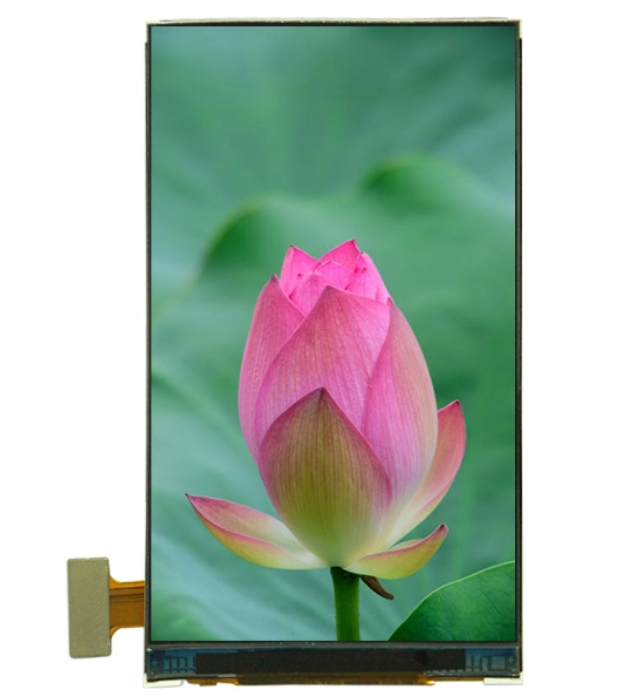

3.97 Inch 480*800 IPS RGB 16bit Interface TFT LCD Display

FT39731JPY-39P SPEC-FS.pdf

4 Inch TFT LCD 480 * 800 IPS RGB Interface LCD Display Screen 3.97 Inch TFT LCD for Security System Time Recorder

A. Specifications:

* FT39731JPY-39P is a small Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 800 x 480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 300cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

ITEM	CONTENT	DESCRIPTION
1	Display outline size	55.4 ( H ) * 96.7 ( W ) * 2.0 mm ( T )
2	Luminance	300cd / M2
3	Resolution	800 RGB ( H ) x 480 ( V )
4	With /Without Touch screen	CTP Or Without Option
5	Interface	RGB 16bit
6	Backlight	8 - Led White
7	Color	262K
8	Drive IC	ST7701S

Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome.
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days

Our Certificates:
1. GB / T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display

B. Product Details:

We have a series of small lcd screen solutions can be provided.

Most of our products can be used for Wearable device/Smart watch for kids/Men/Woman/POS system/ Vehicle device/Medical device and so on.

1.54 inch tft lcd touch screen with MCU ips square wide screen for electronic products

is a small size ips wide viewing direction lcd display ,it can go with resistive touch panel or without.240*240 resolution, 180~200cd/m2 brightness.

C. Structure Diagram:

FQA

1.Q: Order process
A:PO is placed by clients → PI is issued by FS → Payment by clients → Lead time is
confirmed by FS → Shipping instrction by Clients → Delivery → Cargo tracking →
Receipt of cargo

2.Q: Lead time ( after payment is confirmed)
Sample: 1-10 working days
Volume: 12-15 working days

1001~5000pcs : 3~5 weeks

5000pcs + : 5~7weeks

3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash

4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)

5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of FS confirm if have questions
→ Sales rep issue RMA No to clients if confirmed by QA → Return to FS → Formal
report after goods received by FS → Clients confim the analysis report → Proceeding
as per the Report both agreed

6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
